What is a Dye Penetrant Test? Understanding NDT Methods for Detecting Material Cracks

Dye Penetrant Test, also known as Liquid Penetrant Inspection (LPI), is a Non-Destructive Testing (NDT) method used to detect discontinuities or defects that are open to the surface in non-porous materials. This method is widely used, especially in industries with stainless steel or non-ferrous equipment.

This article will provide a simple explanation of the Dye Penetrant Test, including its definition, differences from other NDT methods, and the procedures for conducting it.

Differences Between Dye Penetrant Testing and Other NDT Methods

Although both aim to conduct safety inspections, DPT has different characteristics compared to other methods, such as:

1. Dye Penetrant Test (DPT) vs Magnetic Particle Inspection (MPI)

Unlike MPI, which uses magnetic fields for ferromagnetic metals, Dye Penetrant Testing uses colored/fluorescent liquids for non-porous materials. The MPI method is more effective for detecting minor subsurface defects, while dye penetrant testing is more effective for surface defects.

2. Dye Penetrant Test vs Ultrasonic Testing (UT)

Ultrasonic Testing uses sound waves to detect defects inside materials (internal). In contrast, DPT focuses exclusively on leaks or cracks that reach the outer surface.

Standard Procedure for Conducting Inspections Using the Dye Penetrant Test Method

1. Surface Cleaning (Pre-Cleaning)

Clean the surface of dust or other dirt using a cleaner so that the penetrant liquid can penetrate perfectly into the defective or damaged parts.

2. Application of Penetrant

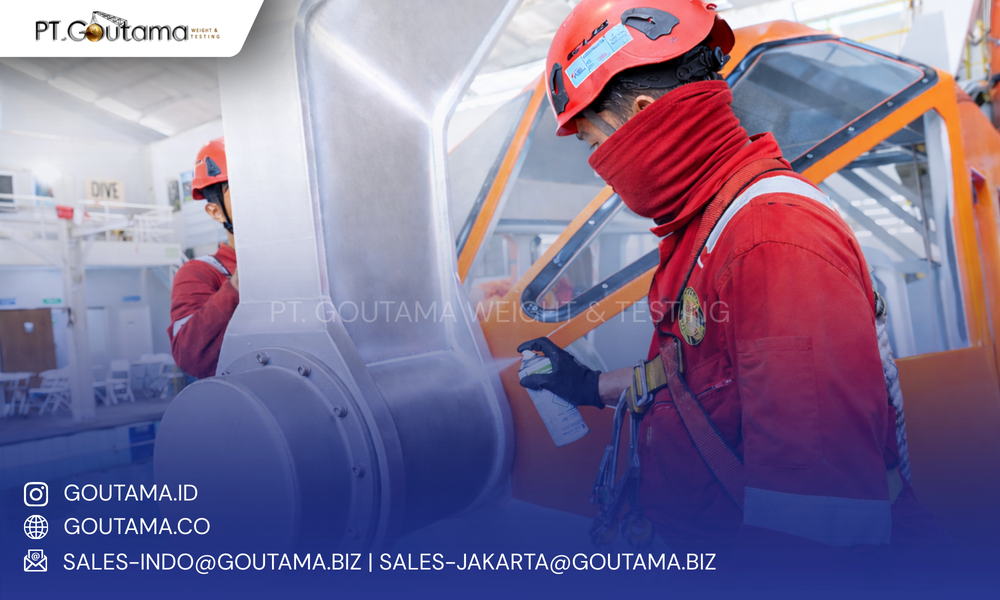

The penetrant is sprayed or applied and left for a certain amount of time (dwell time) until it completely penetrates the material.

3. Cleaning Penetrant Residue

Excess penetrant fluid is carefully cleaned using a clean cloth moistened with solvent. After that, it is left to dry through normal evaporation.

4. Developer Application

The developer fluid is applied to draw the penetrant out of the cracks, creating a clear color contrast after being left for approximately 5-10 minutes.

5. Inspection

The type and size of defects are determined by observing the parts that show signs of defects (stains or colored lines) and then documenting them for inclusion in the inspection report.

6. Post Cleaning

The tested material is cleaned using a cleaner and then dried using a cloth.
